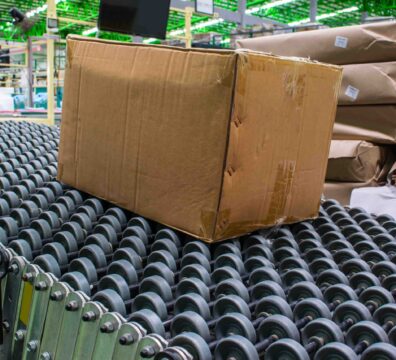

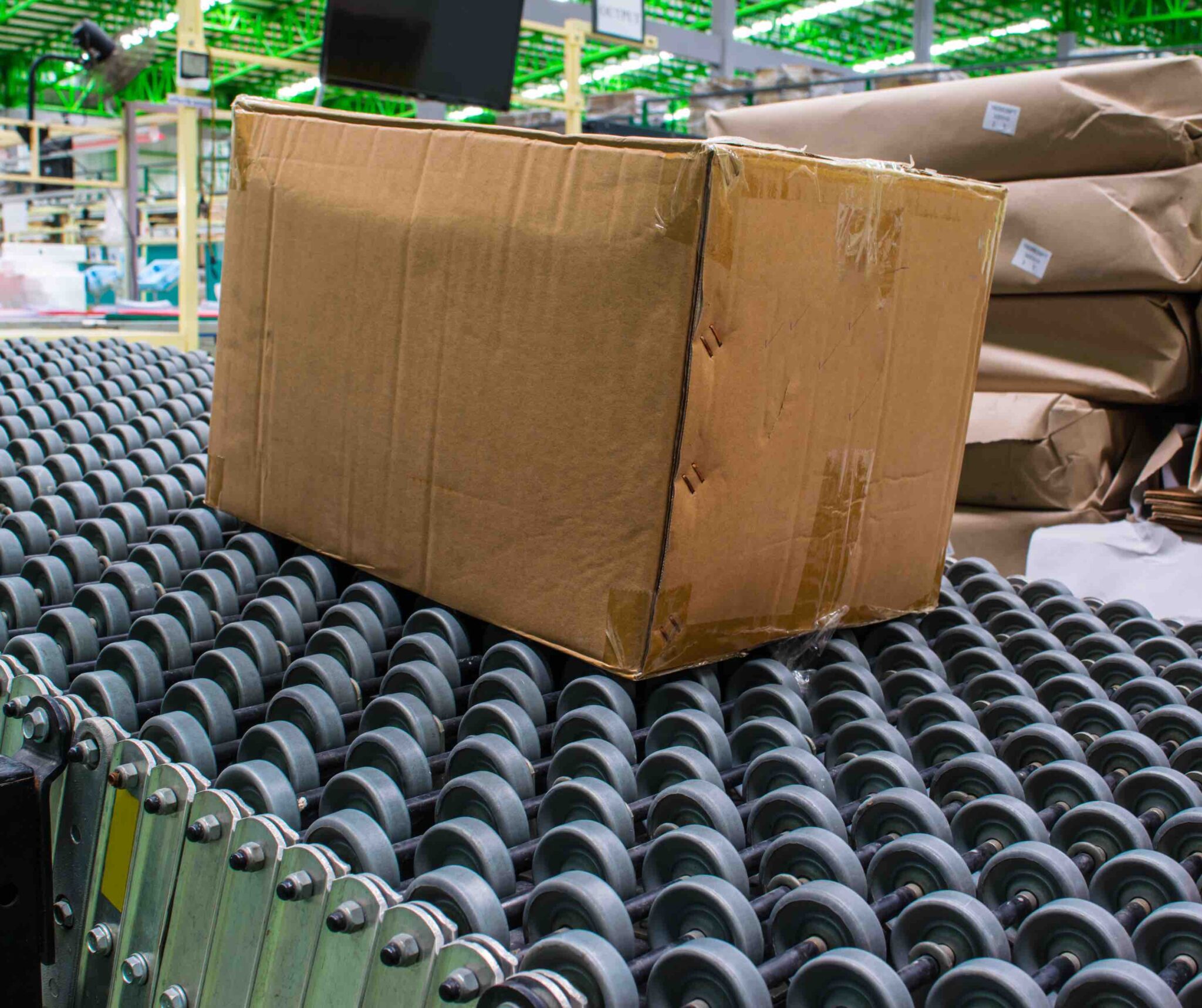

Roller Gravity Conveyors are a type of conveyor system that uses a series of rollers to move products or materials from one point to another. The conveyor is typically made up of a frame that supports the rollers, which are mounted on axles and spaced apart to allow products to move along the conveyor using gravity.

They come in different configurations, including straight sections, curves, and spurs. Straight sections move products in a linear path, curves change the conveyor’s direction, and spurs divert products onto or off the conveyor.

Roller gravity conveyors are widely used in manufacturing and distribution facilities to transport products between workstations or across facility areas. They are ideal for handling light to medium-weight products, such as boxes, totes, and cartons.

One of the main advantages of roller gravity conveyors is that they require little to no power to operate. Products move naturally using gravity, making them a cost-effective, simple, and reliable solution. They require minimal maintenance while providing efficient product movement across production lines.

Overall, roller gravity conveyors are a versatile, efficient, and economical solution for transporting products in a variety of industries, including manufacturing, distribution, and logistics.

Technical description
Roller Diameter: Typically ranges from 40 mm to 90 mm, depending on application requirements.

Roller Spacing: Varies by application, with typical spacing between 70 mm and 150 mm.

Frame Construction: Made of steel or stainless steel. Light-duty frames handle lighter products, while heavy-duty frames are designed for heavier loads.

Roller Material: Rollers may be made of steel, plastic, or a combination. Steel rollers provide durability for heavy-duty applications, while plastic rollers are lighter and more economical.

Weight Capacity: Varies with roller diameter, spacing, and frame. Light-duty conveyors handle up to 150 lbs/ft, while heavy-duty conveyors can support up to 3000 lbs/ft.

Conveyor Length: Can be customized from a few meters to several hundred meters.

Curve Radius: Typically ranges from 60 cm to 120 cm, depending on layout requirements.

Controls: Can include manual controls (for start/stop) or automatic controls (for speed and operational efficiency).
